How to Deploy Machine Learning Models with Azure Machine Learning

How to Deploy Machine Learning Models with Azure Machine Learning

With machine learning gaining popularity, many businesses are adding machine learning models to existing systems. Model deployment integrates a machine learning model into a production environment. If done well, this empowers businesses to make data-driven decisions in weeks. Knowledge of efficient model deployment is an essential skill for competitive data scientists.

Contents

• What is Azure Machine Learning?
• Step 1: Register Your Model
• Step 2: Prepare to Deploy
• Step 3: Deploy to Target
• Step 4: Consume Web Services

What is Azure Machine Learning?

Azure Machine Learning is a cloud service that helps you train, deploy, automate, and manage machine learning models at scale. It fully supports open-source technologies such as PyTorch, TensorFlow, and scikit-learn.

Efficient deployment of machine learning models is essential for businesses to integrate data-driven decisions into their systems.

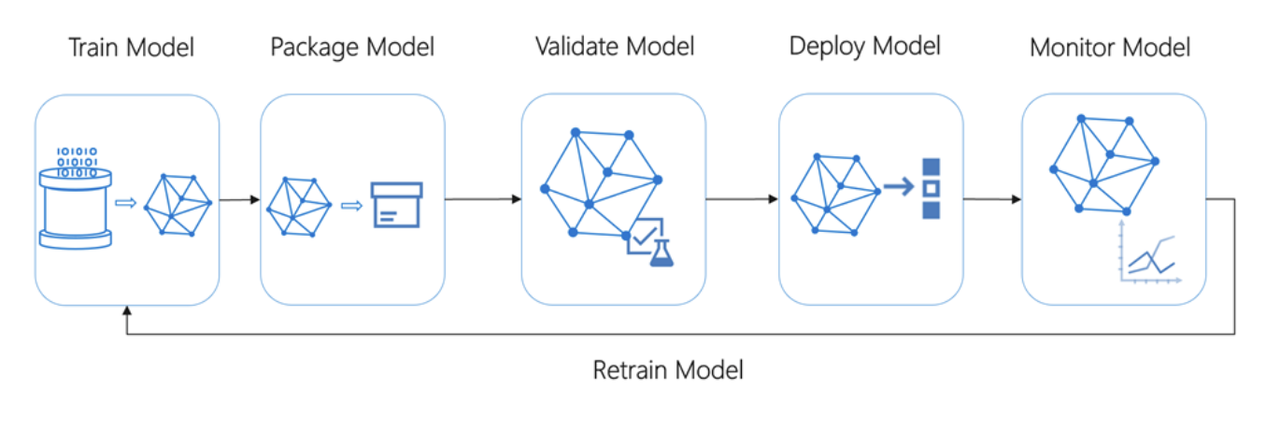

Note: The deployment workflow is similar regardless of where you deploy your model.

1. Register Your Model

First, register your machine learning model in your Azure Machine Learning workspace. You can register a model either from an Experiment Run or from an externally created model.

• Register a model from an Experiment Run:

  • Scikit-learn example using the SDK:

    model = run.register_model(model_name='sklearn_mnist', model_path='outputs/sklearn_mnist_model.pkl')
    print(model.name, model.id, model.version, sep='\t')


  • Using the CLI:

    az ml model register -n sklearn_mnist --asset-path outputs/sklearn_mnist_model.pkl --experiment-name myexperiment


  • Using VS Code: Register models using any model files or folders with the Visual Studio Code extension.

• Register an externally created model: If the model was created outside Azure, you can register it by providing a local path to the model (folder or single file).

  • ONNX example with the Python SDK:

    import urllib.request
    onnx_model_url = "https://www.cntk.ai/OnnxModels/mnist/opset_7/mnist.tar.gz"
    urllib.request.urlretrieve(onnx_model_url, filename="mnist.tar.gz")
    !tar xvzf mnist.tar.gz

    model = Model.register(workspace=ws,
                           model_path="mnist/model.onnx",
                           model_name="onnx_mnist",
                           tags={"onnx": "demo"},
                           description="MNIST image classification CNN from ONNX Model Zoo")


  • Using the CLI:

    az ml model register -n onnx_mnist -p mnist/model.onnx


2. Prepare to Deploy

To deploy a model as a web service, create an inference configuration (InferenceConfig) and a deployment configuration. The entry script receives data submitted to a deployed web service, passes it to the model, and returns the response to the client.

The script contains two functions:

• init(): Loads the model into a global object when the Docker container starts (runs only once).
• run(input_data): Uses the model to predict values based on the input data.

3. Deploy to Target

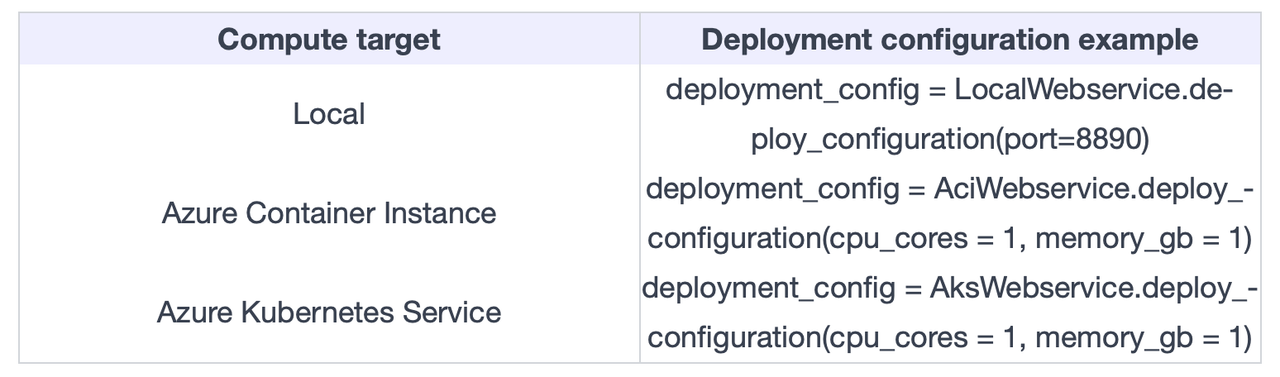

To deploy the model, configure the deployment based on your target compute resource, such as local machines, Azure Container Instances (ACI), or Azure Kubernetes Services (AKS).

Below is an example using an existing AKS cluster with the Azure Machine Learning SDK, CLI, or the Azure portal:

• Using the SDK:

    aks_target = AksCompute(ws, "myaks")

    deployment_config = AksWebservice.deploy_configuration(cpu_cores=1, memory_gb=1)

    service = Model.deploy(ws, "aksservice", [model], inference_config, deployment_config, aks_target)

    service.wait_for_deployment(show_output=True)

    print(service.state)
    print(service.get_logs())


• Using the CLI:

    az ml model deploy -ct myaks -m mymodel:1 -n aksservice -ic inferenceconfig.json -dc deploymentconfig.json


• Using VS Code: Deploy to AKS via the VS Code extension, configuring AKS clusters in advance.

4. Consume Web Services

Every deployed web service provides a REST API, allowing you to create client applications in various programming languages. If authentication is enabled for your service, include a service key as a token in the request header.

Example of invoking the service in Python:

import requests
import json

headers = {'Content-Type': 'application/json'}

if service.auth_enabled:
    headers['Authorization'] = 'Bearer ' + service.get_keys()[0]

test_sample = json.dumps({'data': [
    [1, 2, 3, 4, 5, 6, 7, 8, 9, 10],
    [10, 9, 8, 7, 6, 5, 4, 3, 2, 1]
]})

response = requests.post(service.scoring_uri, data=test_sample, headers=headers)

print(response.status_code)
print(response.elapsed)
print(response.json())

The general workflow to create a client that uses a machine learning web service involves:

1. Using the SDK to get the connection information.
2. Determining the type of request data used by the model.
3. Creating an application that calls the web service.
