DEPLOY A CUSTOM MODEL TO A BATCH ENDPOINT WITHOUT USING MLflow MODEL FORMAT

Ksama Arora

(II) DEPLOY A CUSTOM MODEL TO A BATCH ENDPOINT WITHOUT USING MLflow MODEL FORMAT

To deploy model, you must create

Scoring script
Environment

(A) Create scoring script:

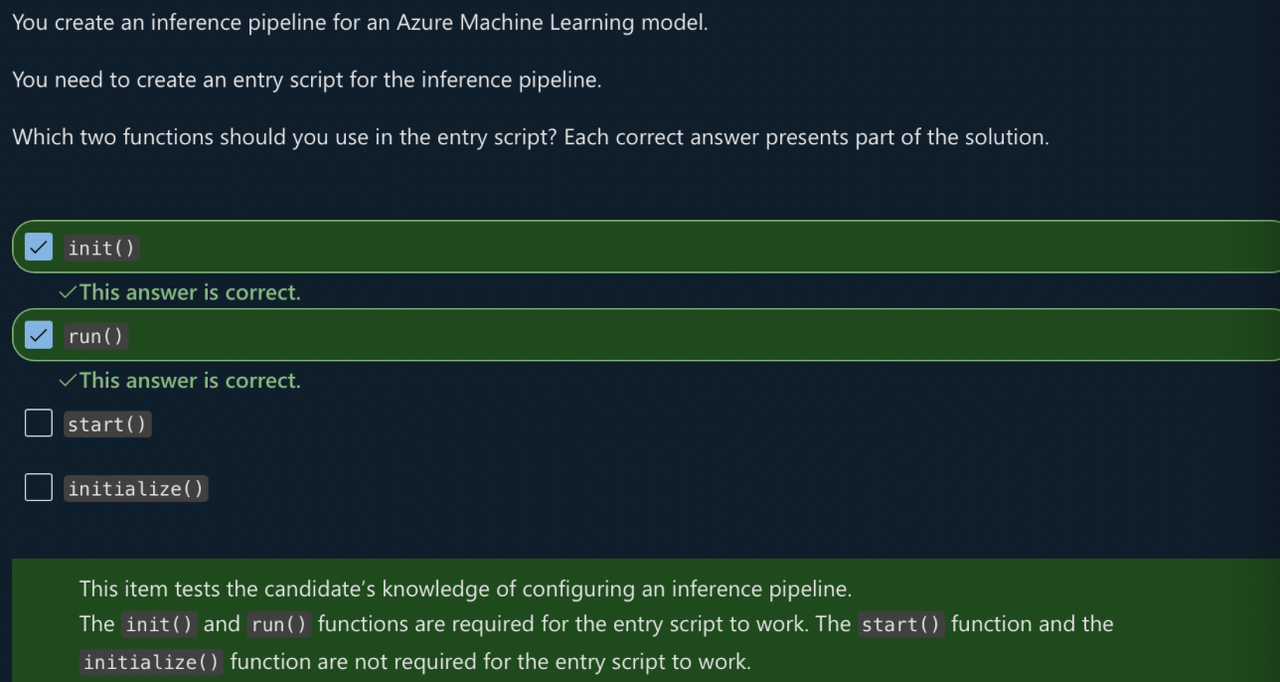

Scoring script must include two functions:

init(): Called once at beginning of process, so use for any costly or common preparation like loading the model
run(): Called for each mini batch to perform the scoring. The run() method should return a pandas DataFrame or array/list

import os
import mlflow
import pandas as pd

def init():
    global model # global variable used to make any assets available that are needed to score the new data, like the loaded model.

    # get the path to the registered model file and load it
    model_path = os.path.join(os.environ["AZUREML_MODEL_DIR"], "model") # AZUREML_MODEL_DIR is an environment variable that you can use to locate the files associated with the model.
    model = mlflow.pyfunc.load(model_path)


def run(mini_batch): # size of the mini_batch is defined in the deployment configuration. If the files in the mini batch are too large to be processed, you need to split the files into smaller files.
    print(f"run method start: {__file__}, run({len(mini_batch)} files)")
    resultList = []

    for file_path in mini_batch:
        data = pd.read_csv(file_path)
        pred = model.predict(data)

        df = pd.DataFrame(pred, columns=["predictions"]) # By default, the predictions will be written to one single file.
        df["file"] = os.path.basename(file_path)
        resultList.extend(df.values)

    return resultList

(B) Create an environment

Can create using docker image with conda dependencies or with Dockerfile

Conda yml file code:

name: basic-env-cpu
channels:
  - conda-forge
dependencies:
  - python=3.8
  - pandas
  - pip
  - pip:
      - azureml-core
      - mlflow

Create environment with following code

from azure.ai.ml.entities import Environment

env = Environment(
    image="mcr.microsoft.com/azureml/openmpi3.1.2-ubuntu18.04",
    conda_file="./src/conda-env.yml",
    name="deployment-environment",
    description="Environment created from a Docker image plus Conda environment.",
)
ml_client.environments.create_or_update(env)

(C) Create the deployment using BatchDeployment class

from azure.ai.ml.entities import BatchDeployment, BatchRetrySettings
from azure.ai.ml.constants import BatchDeploymentOutputAction

deployment = BatchDeployment(
    name="forecast-mlflow",
    description="A sales forecaster",
    endpoint_name=endpoint.name,
    model=model,
    compute="aml-cluster",
    code_path="./code",
    scoring_script="score.py",
    environment=env,
    instance_count=2,
    max_concurrency_per_instance=2,
    mini_batch_size=2,
    output_action=BatchDeploymentOutputAction.APPEND_ROW,
    output_file_name="predictions.csv",
    retry_settings=BatchRetrySettings(max_retries=3, timeout=300),
    logging_level="info",
)
ml_client.batch_deployments.begin_create_or_update(deployment)
